Sistem complet supraveghere 4 camere Hikvision 5 Mp, ir 80 m

Date tehnice DVR Hikvision 5MP (DS-7104HUHI):

Video/Audio Input
Audio Intrari:     |     4-canale
Compresie video:     |     H.264,H.264+
Analog si HD-TVI video intrari:     |     8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Tipuri de camere suportate:     |     Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
Support AHD intrare: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS intrare
Intrare video:     |     BNC (1.0 Vp-p, 75Ω)
Compresie audio:     |     G.711u
Interfata audio:     |     4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:     |     1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
Iesire CVBS :     |     1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
Iesire HDMI/VGA :     |     HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz
VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Rezolutie inregistrare:     |     Mainstream:5MP/4MP/3Mp/1080p/720p/WD1/4CIF/VGA/CIF
Sub-stream:WD1/4CIF/CIF/QVGA/QCIF
Frame Rate:     |     Main stream:
5MP@10fps/4MP@15fps/3MP@15fps/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate:     |     32 Kbps-10 Mbps
Stream Type:     |     Video/Video&Audio
Two-way Audio:     |     1-ch, RCA (2.0 Vp-p, 1 kΩ)
Iesire audio:     |     1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:     |     64kbps
Dual Stream:     |     Support
Rezolutie Playback:     |     5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
Playback sincron:     |     8-ch
Retea:
Remote connections:     |     128
Network protocols:     |     TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF
Hard Disk Driver
Interface Type:     |     1 SATA Interface
Capacity:     |     Pana la 6 TB capacitatea pentru 1 HDD
External Interface
Network Interface:     |     1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:     |     2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Alarm Input:     |     8-ch
Alarm Output:     |     4-ch
General
Alimentare:     |     12V DC
Consum:     |     ≤ 15W(fara hard disks)
Temperatura de lucru:     |     -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)

Date tehnice camere de supraveghere:

Senzor:     |     5MP CMOS Image Sensor
Pixeli:     |     2592(H)*1944(V)
Iluminare minima:     |     Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time:     |     1/25(1/30) s to 1/50,000 s
Lentila:     |     3.6 mm
Lens Mount:     |     M12
Ajustare montaj:     |     Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360°
Day& Night:     |     IR cut filter with auto switch
Video Frame Rate:     |     2592×1944@20fps
HD Video Output:     |     1 Analog HD output
Synchronization:     |     Internal Synchronization
Meniu:
D/N Mode:     |     Auto / Color / B/W
Auto White Balance:     |     Auto/MWB
BLC:     |     Suporta
Functii:     |     Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR
Caracteristici generale:
Temperatura operare:     |     -40 °C -60 °C
Umiditate 90% fara condensare
Alimentare:     |     12 VDC±30%
Consum:     |     Max. 5 W
Protectie exterioara:     |     IP67
Distanta IR:     |     Maxim  40m
Protocol: HIKVISION-C(Coaxitron)
Dimensiuni:     |     86.7 mm × 81.6 mm × 226 mm
Greutate:     |     Approx. 680 g

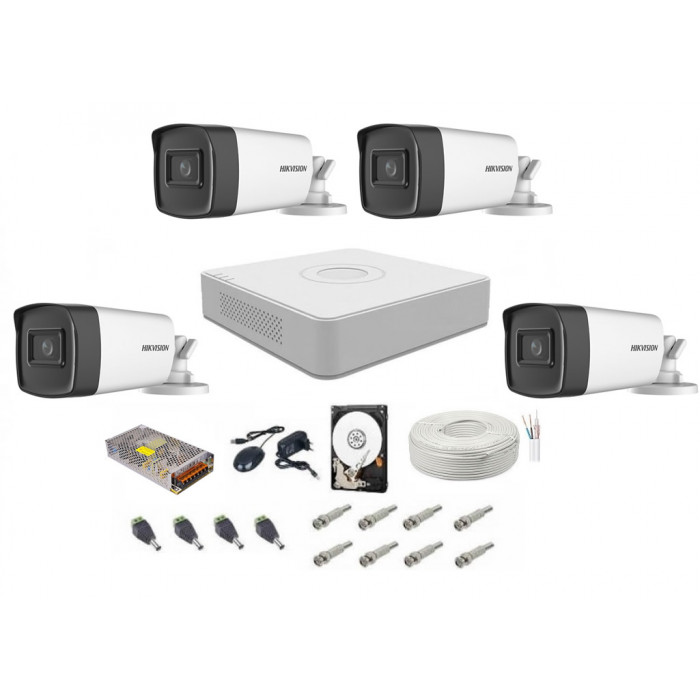

Sistemul contine:
4 camere de supraveghere cu rezolutia de 5 Mp la 20 fps si vederea pe timp de noapte la maxim 80 m,
DVR 4 canale 5MP
surse pentru echipamente,
accesorii DVR,
Mufe
HDD 500 Gb, si
40 m de cablu CCTV.

Garantie: 24 Luni
